Flat Bottom Storage Silos, Durable Storage Solutions

Flat Bottom Storage Silos

At Royal Water Project, we specialize in Flat Bottom Storage Silos designed to meet a variety of bulk storage needs. These silos provide robust and efficient storage solutions for industries such as agriculture, manufacturing, and food processing.

For Durable & Large-Scale Dry Storage

Flat bottom silos are constructed in accordance with ASTM A: 653 and have analytical certificates. Our confirmed product portfolio and proven experience will offer you value long after the purchase for any form of large port facilities. With unparalleled knowledge and experience, Royal water projects Steels tackle the most difficult challenges in the agriculture sector.

Flat Bottom Silos are capable of storing any type of material and have a flat bottom surface thanks to the employment of advanced technology in their construction. For grain storage exceeding 500MT, flat bottom silos are recommended.

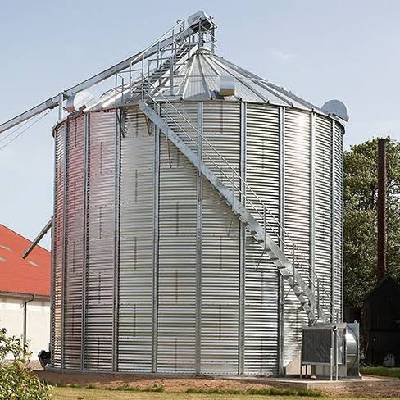

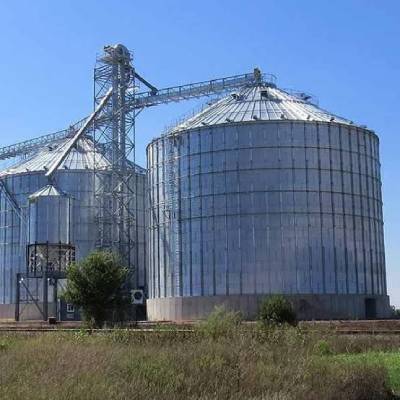

With deep civil foundations built on the site to accommodate the size of the grain silos, the corrugated, performed silos panels are joined cylindrically on circular purlins and vertical stiffeners using bolts and nuts on the heavy concrete rings.

Additionally, all required accessories are offered. For convenient discharge exits with valves, a sweep auger is also attached inside the level concrete bottom. At the summit of the assembled cylindrical side wall, there is also a slanted roof with manholes, a roof ladder, and railings. There are also the required guarded outdoor and interior ladders available.

When constructing the silos, corrugated zinc aluminum sheet panels offer a number of clear benefits over corrugated galvanized steel panels. As an alternative, there is an additional choice which is hopper bottom silo.

Characteristics of Flat Bottom Silos

To do a dynamic analysis of the structural stability of silos, the seismic zone and wind loads of the specific places where the silos will be put are taken into account.

The characteristics of the location where the silos will be built are taken into account while calculating the snow load.

Wind load is determined based on the silo's height, particularly in the case of the flat bottom grain silo when it is empty.

Excellent and extremely durable materials are used in the silos' production.

The steel sheets used to build the silos have a 350MPa zinc concentration.

Zincalume steel is coated with an alloy of silicon, zinc, and aluminum at 600 degrees Celsius, which greatly improves its corrosion resistance. In addition, special resin coating and passivation are applied to further enhance the steel's resistance to scratches.

GI Silos with conventional G-140 (450g/m2) and G-115 (350g/m2) zinc coatings can also be supplied upon request from the customer.
